Who manufactures the LSS?

Wilford (Zhangjiagang Wilford Thermal Co., Ltd.), an industrial boiler manufacturer and supplier in Zhangjiagang, China, since 1998. The LSS is designed and built in its own boiler factory, which holds the class B boiler licence, ASME S with National Board registration, and ISO 9001.

What output and pressure does the LSS cover?

The LSS covers 50–500 kg/h at 0.7 MPa, in 7 standard sizes. Every size is listed in the parameter table on this page.

Which fuels can the LSS use?

Natural gas / LPG, diesel / heavy oil. The heat source is matched to the energy available on site; tell us which one you will use.

What do you need for a quotation?

Output, working pressure, fuel, power supply (for electric units), the application and the destination country.

Steam · LSS series

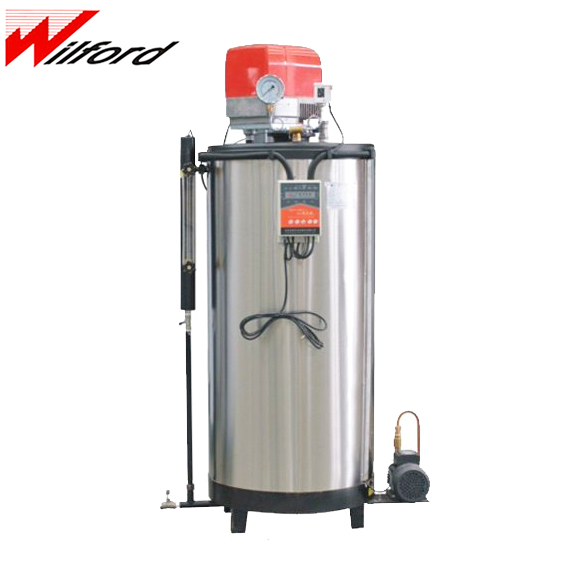

LSS Inspection-Free Oil/Gas Steam Generator

Industrial gas steam generator with small water content, also for diesel — 7 standard sizes.

Request a quotation →Parameters

LSS Inspection-Free Oil/Gas Steam Generator

Output: 50–500 kg/h
Working pressure: 0.7 MPa
Standard sizes: 7
Fuel: Natural gas · Diesel

Design

On-site installation is convenient and can be used quickly.

Medium: Steam
Fuel: Natural gas / LPG, Diesel / heavy oil
Output: 50–500 kg/h
Working pressure: 0.7 MPa
Standard sizes: 7 · LSS0.05 – LSS0.5
Industry: Foods, Garment, Textile, Paper, Brewery, Rice mill, Dairy Products, Laundry, Poultry feed, Package, Plywood, Building material, Chemical, etc

The corresponding boiler parameters can be customized according to customer requirements.

Features

Swipe →

01 / 07
LSS series oil / gas fired steam boiler adopts Fully skid-mounted design to concentrate steam supply.
02 / 07
It can realize single independent control or centralized unified control, free of installation design.
03 / 07
The method of installing the boiler and all accessories on a base.
04 / 07
The entire production and assembly process is done in the factory.
05 / 07
On-site installation is convenient and can be used quickly.
06 / 07
Compact structure and easy migration.
07 / 07
The corresponding boiler parameters can be customized according to customer requirements.

Gallery

LSS Inspection-Free Oil/Gas Steam Generator

4 images

Technical parameters

LSS series

Every standard size with output, pressure, fuel consumption, connections, dimensions and weight. Boilers are built to order — the quotation confirms the final figures.

Ask for drawings →

Swipe the table for all sizes

LSS National inspection-free oil(gas )steam generator

Model			LSS0.05-0.7-Y.Q	LSS0.1-0.7-Y.Q	LSS0.125-0.7-Y.Q	LSS0.2-0.7-Y.Q	LSS0.25-0.7-Y.Q	LSS0.3-0.7-Y.Q	LSS0.5-0.7-Y.Q
Project		Unit	LSS0.05-0.7-Y.Q	LSS0.1-0.7-Y.Q	LSS0.125-0.7-Y.Q	LSS0.2-0.7-Y.Q	LSS0.25-0.7-Y.Q	LSS0.3-0.7-Y.Q	LSS0.5-0.7-Y.Q
Rated evaporation		Kg/h	50	100	125	200	250	300	500
Rated working pressure		MPa	0.7	0.7	0.7	0.7	0.7	0.7	0.7
Saturated steam temperature		℃	170	170	170	170	170	170	170
Fuel consumption	Light diesel oil	kg/h	3.5	6.8	8.5	14	16	20	33
	Natural gas	Nm³/h	3.5	7.3	9.2	14.5	19	22	36.5
	LPG	Nm³/h	3.3	5.7	7.2	11.4	7.5	17.3	28.7
	City gas	Nm³/h	8.5	18	22.5	34	43	52	88
Water capacity		L	29	49.3	49.3	49.5	49.5	49.5	49.6
a Main steam valve diameter		DN	15	25	25	32	32	32	50
b Safety valve diameter		DN	20	20	20	25	25	25	40
c Inlet diameter		DN	15	15	15	15	15	15	15
d Blowoff Valve diameter		DN	20	20	20	25	25	25	25
Chimney diameter		DN	80	125	125	150	150	150	250
Overall size	L	mm	820	880	900	1400	1500	1500	1800
	W	mm	890	1100	1150	1000	1100	1200	1300
	H	mm	1600	1800	1900	1000	2200	2200	2350
Weight		kg	180	220	240	850	1150	1200	1680

From Wilford’s published data sheet. Boilers are built to order — the quotation confirms the final figures.

Projects

LSS in operation

All projects →

China
Two WFQ1000 steam generators in parallel for a central laundry

Common questions

Questions about the LSS

What type of boiler is the LSS?: Industrial gas steam generator with small water content, also for diesel.
Who manufactures the LSS?: Wilford (Zhangjiagang Wilford Thermal Co., Ltd.), an industrial boiler manufacturer and supplier in Zhangjiagang, China, since 1998. The LSS is designed and built in its own boiler factory, which holds the class B boiler licence, ASME S with National Board registration, and ISO 9001.
What output and pressure does the LSS cover?: The LSS covers 50–500 kg/h at 0.7 MPa, in 7 standard sizes. Every size is listed in the parameter table on this page.
Which fuels can the LSS use?: Natural gas / LPG, diesel / heavy oil. The heat source is matched to the energy available on site; tell us which one you will use.
What do you need for a quotation?: Output, working pressure, fuel, power supply (for electric units), the application and the destination country.
