Steam · LDR series
LDR Inspection-Free Electric Steam Generator
Small electric steam generator with built-in feed pump — 9 standard sizes.

- Output
- 12–125 kg/h
- Working pressure
- 0.7 MPa
- Standard sizes
- 9
- Fuel
- Electric
Design
Small electric steam boilers with compact size, automatic water feeding pumps inside, fully automatic water level and pressure control, could continuous work.
- Medium
- Steam
- Fuel
- Electric
- Output
- 12–125 kg/h
- Working pressure
- 0.7 MPa
- Standard sizes
- 9 · LDR0.012 – LDR0.125
- Rated voltage
- 3N AC 50Hz 380V
- Industry
- Foods, Garment, Textile, Paper, Brewery, Rice mill, Dairy Products, Laundry, Poultry feed, Package, Plywood, Building material, Chemical, etc
According to article 99 of 《Regulations on safety supervision of special equipment 》and TSG G0001《Boiler safety technology supervision regulation 》,above steam boilers capacity less than 30L,which product safety performance not belong to category of mandatory supervision and inspection –《Measures for the supervision and administration of boiler pressure vessel manufacturing 》and no need local supervision and inspection.
Features
Swipe →Gallery

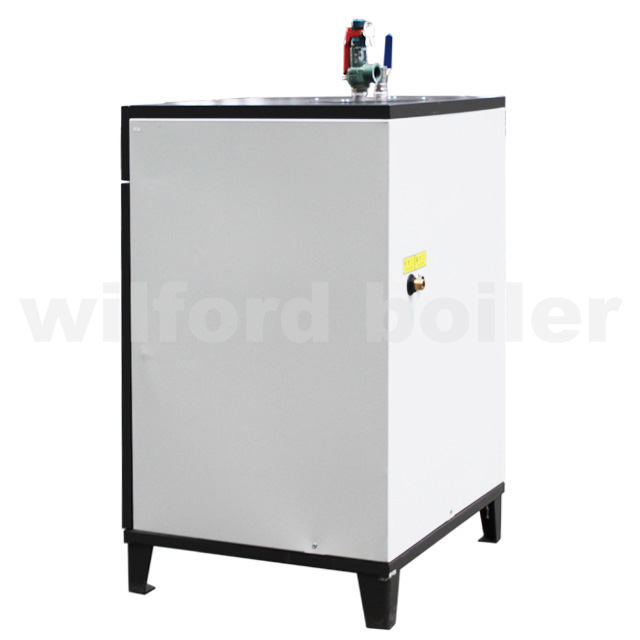

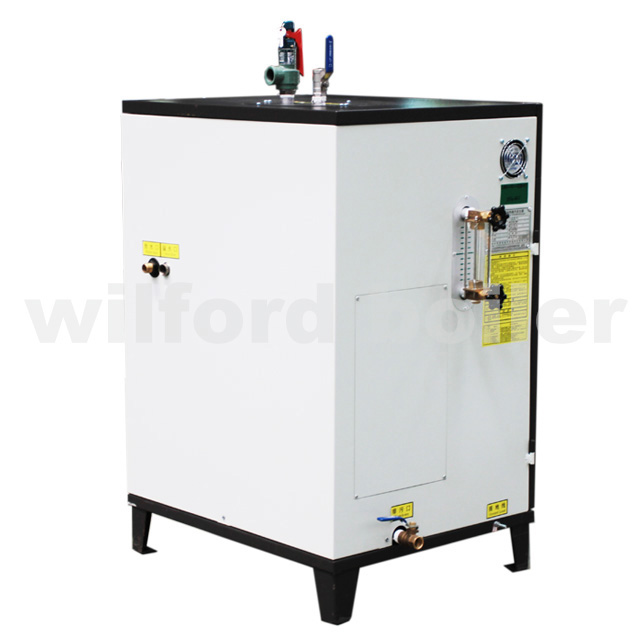

LDR Inspection-Free Electric Steam Generator
6 images
Technical parameters
LDR series
Every standard size with output, pressure, fuel consumption, connections, dimensions and weight. Boilers are built to order — the quotation confirms the final figures.
Ask for drawings →Swipe the table for all sizes
| Model | LDR0.012-0.7 | LDR0.016-0.7 | LDR0.025-0.7 | LDR0.035-0.7 | LDR0.05-0.7 | LDR0.06-0.7 | LDR0.08-0.7 | LDR0.1-0.7 | LDR0.125-0.7 | ||
| Project | UNIT | ||||||||||
| Rated evaporation | Kg/h | 12 | 16 | 25 | 35 | 50 | 60 | 80 | 100 | 125 | |
| Rated working pressure | MPa | 0.7 | 0.7 | 0.7 | 0.7 | 0.7 | 0.7 | 0.7 | 0.7 | 0.7 | |
| Saturated steam temperature | ℃ | 170 | 170 | 170 | 170 | 170 | 170 | 170 | 170 | 170 | |
| Input power | KW | 9 | 12 | 18 | 27 | 36 | 40 | 54 | 72 | 90 | |
| Input current | A | 14 | 18 | 27 | 41 | 54 | 60 | 81 | 108 | 135 | |
| Rated voltage | V | 3N AC 50Hz 380V | |||||||||
| aMain steam valve diameter | DN | 15 | 15 | 15 | 15 | 15 | 15 | 15 | 25 | 25 | |
| bSafety valve diameter | DN | 15 | 15 | 15 | 15 | 15 | 15 | 15 | 25 | 25 | |
| cInlet diameter | DN | 15 | 15 | 15 | 15 | 15 | 15 | 15 | 15 | 15 | |
| dBlowoff valve diameter | DN | 15 | 15 | 15 | 15 | 15 | 15 | 15 | 20 | 20 | |
| Overall size | L | mm | 540 | 540 | 540 | 540 | 650 | 650 | 650 | 800 | 800 |
| W | mm | 650 | 650 | 650 | 650 | 660 | 660 | 660 | 800 | 800 | |
| H | mm | 980 | 980 | 1100 | 1100 | 1380 | 1380 | 1380 | 1580 | 1580 | |
| Weight | kg | 95 | 95 | 105 | 105 | 130 | 130 | 135 | 195 | 195 | |
According to customer order requirements, the company can provide customized products for specific power supply in the world.
From Wilford’s published data sheet. Boilers are built to order — the quotation confirms the final figures.
Projects
LDR in operation
Common questions
Questions about the LDR
- What type of boiler is the LDR?
- Small electric steam generator with built-in feed pump.
- Who manufactures the LDR?
- Wilford (Zhangjiagang Wilford Thermal Co., Ltd.), an industrial boiler manufacturer and supplier in Zhangjiagang, China, since 1998. The LDR is designed and built in its own boiler factory, which holds the class B boiler licence, ASME S with National Board registration, and ISO 9001.
- What output and pressure does the LDR cover?
- The LDR covers 12–125 kg/h at 0.7 MPa, in 9 standard sizes. Every size is listed in the parameter table on this page.
- What power supply does the LDR need?
- Standard units are built for 3N AC 50 Hz 380 V. Tell us your local supply voltage and frequency with the enquiry.
- What do you need for a quotation?
- Output, working pressure, fuel, power supply (for electric units), the application and the destination country.
