WFD Electric Heating Steam Generator

Inquiry Now

Rated steam capacity :1t/h; Rated working pressure :1.0/1.25Mpa; Staturated steam temperature :184/193℃; Input power : 720KW; Rated voltage :3N AC 50Hz 380V; Fuel :Electric heating;etc. Industry :Foods, Garment, Taextile, Paper, Brewery, Ricemill, Dairy Products, Laundry, Poultry feed, Package, Plywood, Building material, Chemical, etc.Safety furnace liner structure, built-in high-efficiency steam-water separation device.

Inquiry Now

★ Safety furnace liner structure, built-in high-efficiency steam-water separation device.
★ Adopt European brand heating tube, Incoloy800 stainless steel material (performance far exceeds 316L material) has super anti-scale and corrosion resistance.
★ Adopting French Schneider Schneider brand contactor, high efficiency, sensitive action, long life and low noise.
★ Adopt Siemens circuit breaker
★ Using German WIKA pressure gauge, high precision, reliable and stable operation
★ The equipment is fully automatic and unattended. The operation is simple, the operation status is color liquid crystal display, and the fault display.
★ Optional additional functions such as remote start and stop, pure water and clean models.

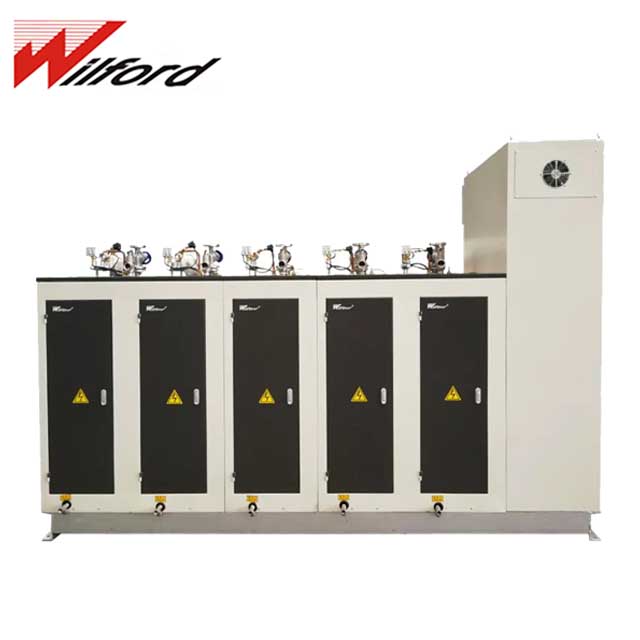

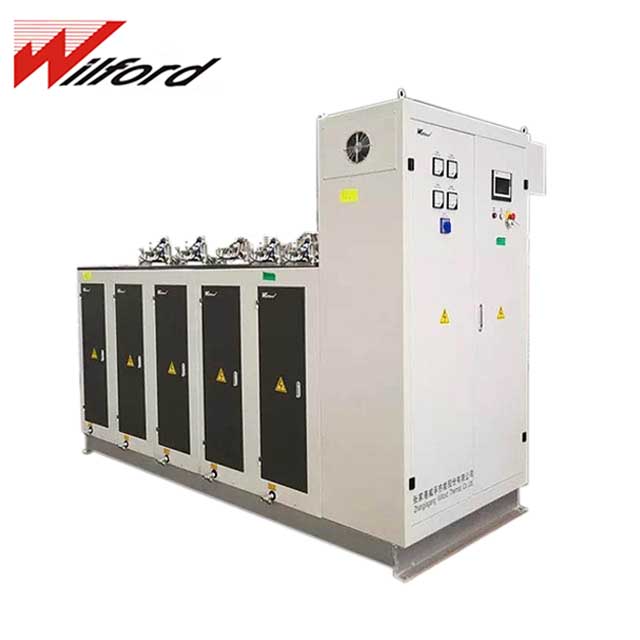

Whole Picture Appreciation

Product Detail Analysis

Technological Process

Our Customer

Our Services

For each user, we understand and analyze in detail their different production environment and the shortage of products in order to provide reasonable technical solutions and timely after-sales service. We attach great importance to the effective operation system of boiler products to provide customers with problem solutions, and send experienced engineers to the site to guide. The company has accumulated a wealth of on-site problem-solving experience, providing strong technical support and perfect after-sales service. User success is our success!

Company Information

Wilford company is specialized in manufacturing the medium and small sized boilers with high quality to solve the high energy efficiency requirements of customers in industrial and commercial fields for steam and heat sources. We supply the whole solution of boilers and boiler systems, reduce energy consumption, save operating costs for each plant, enhancing the environmental protection requirements.
Since 1998, the company are insisted on intelligent and lean production as the leading factor to ensure that each product is super safe and high quality. The fuel, gas and electric heating boilers have high technical content. The company has won many inventions, many high-tech products and new technology and new product awards. We regard the boiler’s efficiency index and extremely low nitrogen emission requirements as the main innovation objectives, Keep unremitting efforts in the environmental protection and energy saving of boilers.
Our products have obtained ASME, CE, SIGAPORE MOM, MALAYSIA DOSCH, AUSTRALIAN WORK SAFE, RUSSIA CU-TR and other certification, the local registration of various countries and other problems are very professional, we have a very strong service team, good service for each customer is our only pursuit!

WFD National Inspection-free Electrical Steam Generator
Type WDR0.15-0.7 WDR0.2-0.7 WFD0.4-0.7 WFD0.6-0.7 WFD0.8-0.7 WFD1.0-0.7 WFD1.2-0.7
Project Unit
Rated evaporation t/h 0.15 0.2 0.4 0.6 0.8 1 1.2
Rated working pressure MPa 0.7 0.7 0.7 0.7 0.7 0.7 0.7
Staturated steam temperature 170 170 170 170 170 170 170
Input Power KW 108 144 288 432 576 720.00 864.00
Input current A 144 216 435 650 865.00 1080.00 1300
Rated pressure V 380V
Power×Group KW×P 36KW*3 36KW*4 36KW*8 36KW*12 36KW*16 36KW*20 36KW*24
a Main steam valve diameter DN 25 25 40 40 50 50 65
b Safety valve diameter DN 25 25  25*2  25*3  25*4  25*5  25*6
c Inlet diamater DN 15 15 25 25 25 40 40
d Blowoff  Valve diameter DN 25 25 25 25 25 25 25
Overall size L mm 1500 1500 1500 1500 1500 1500 1500
W mm 700 700 1400 2100 2800 3500 4200
H mm 1900 1900 1900 1900 1900 1900 1900
Weight T 200 200 400 650 820 1100 1300

Q : Are you a factory or a trading company?
A : We are a 20-year-old industrial boiler factory , specializing in gas oil diesel electric fired boilers. Now we are one of leading industrial boiler manufacturers in China.
Q : What is the Warranty for the boilers?
A : Our steam boiler warranty is one year, During the warranty period, any parts damaged, you can get a new parts for free.
Q : How long should we wait for delivery?
A : Usually it will take about 35-45 days for pressured boilers, If you need to change the voltage or pressure, it need more time .
Q What about your payment term?
A : Usually it would be 30% deposit payment, 70% balance before delivery. We accept T/T, L/C and other payment way.
