Hot water · CLHS series

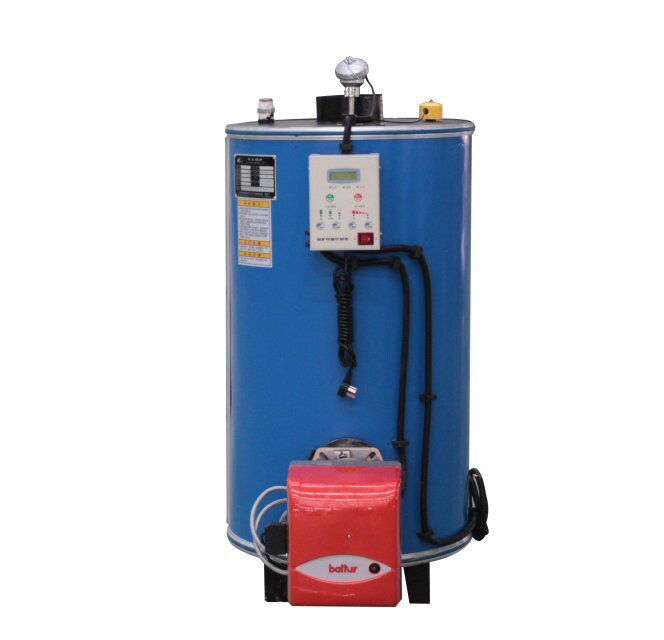

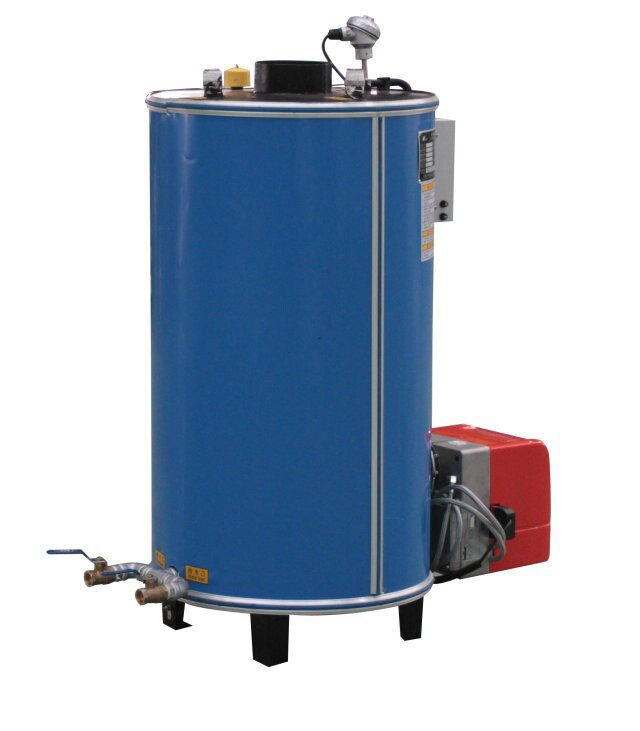

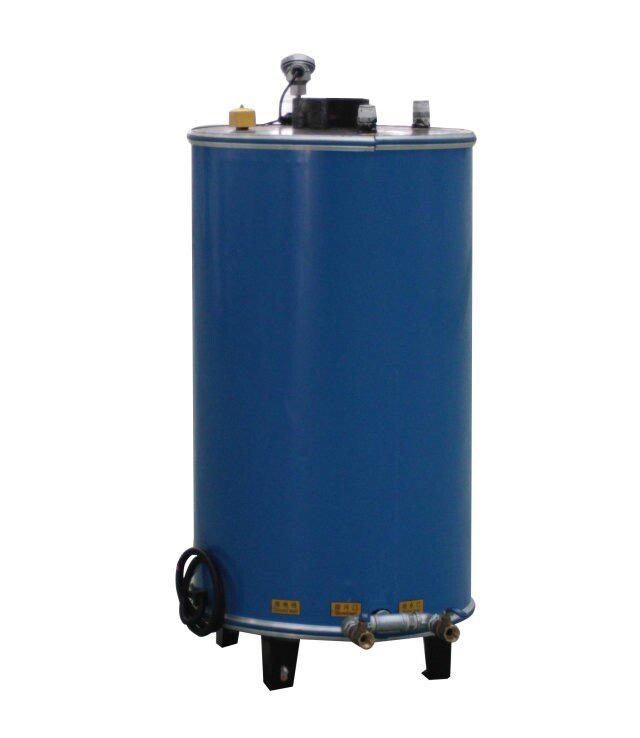

CLHS Vertical Oil/Gas Fired Hot Water Boiler
Vertical gas hot water boiler at atmospheric pressure, also for diesel — 7 standard sizes.

- Output
- 0.06–0.58 MW
- Working pressure
- Atmospheric
- Standard sizes
- 7
- Fuel
- Natural gas · Diesel
Design
Hot water for natural gas, diesel, 0.06–0.58 MW at atmospheric pressure.
- Medium
- Hot water
- Fuel
- Natural gas / LPG, Diesel / heavy oil
- Output
- 0.06–0.58 MW
- Working pressure
- Atmospheric
- Standard sizes
- 7 · CLHS0.06 – CLHS0.58
Every standard size of the CLHS series is listed in the parameter table below with output, pressure, fuel consumption, connections, dimensions and weight. Send your required output, pressure and fuel and we return a model selection, drawings and a quotation.
Features
Swipe →Technical parameters
CLHS series
Every standard size with output, pressure, fuel consumption, connections, dimensions and weight. Boilers are built to order — the quotation confirms the final figures.
Ask for drawings →Swipe the table for all sizes
| Type | CLHS0.06-95/70-Y.Q | CLHS0.12-95/70-Y.Q | CLHS0.17-95/70-Y.Q | CLHS0.23-95/70-Y.Q | CLHS0.35-95/70-Y.Q | CLHS0.47-95/70-Y.Q | CLHS0.58-95/70-Y.Q | ||
| Project | Unit | ||||||||
| Rated thermal power | MW | 0.06 | 0.12 | 0.17 | 0.23 | 0.35 | 0.47 | 0.58 | |
| Total heat capacity | 104kcal | 5 | 10 | 15 | 20 | 30 | 40 | 50 | |
| Rated working pressure | MPa | Ordinary pressure | |||||||
| Fuel consumption | Light diesel oil | kg/h | 5.4 | 10.8 | 16.2 | 21.6 | 32.5 | 43.2 | 54 |
| Natural gas | Nm3/h | 5.8 | 11.7 | 17.5 | 23.4 | 35 | 46.8 | 58.5 | |
| LPG | Nm3/h | 2.5 | 5 | 7.5 | 10 | 15 | 20 | 25 | |
| City gas | Nm3/h | 14.2 | 28.3 | 42.5 | 56.6 | 85 | 113.2 | 141.5 | |
| Water inlet diameter | DN | 50 | 65 | 65 | 65 | 65 | 80 | 100 | |
| Water outlet diameter | DN | 50 | 65 | 65 | 65 | 65 | 80 | 100 | |
| Blowoff valve diameter | DN | 25 | 25 | 25 | 25 | 25 | 40 | 40 | |
| Voltage | V | 220 | 220 | 220 | 220 | 380 | 380 | 380 | |
| Overall size | Length | mm | 800 | 980 | 1150 | 1250 | 1500 | 1550 | 1600 |
| Width | mm | 700 | 850 | 900 | 1000 | 1200 | 1250 | 1450 | |
| Height | mm | 1300 | 1650 | 1800 | 1950 | 2000 | 2100 | 2500 | |
| Weight | kg | 270 | 410 | 450 | 520 | 830 | 980 | 1500 | |
According to customer order requirements, the company can provide customized products for specific power supply in the world.
From Wilford’s published data sheet. Boilers are built to order — the quotation confirms the final figures.
Common questions
Questions about the CLHS
- What type of boiler is the CLHS?
- Vertical gas hot water boiler at atmospheric pressure, also for diesel.
- Who manufactures the CLHS?
- Wilford (Zhangjiagang Wilford Thermal Co., Ltd.), an industrial boiler manufacturer and supplier in Zhangjiagang, China, since 1998. The CLHS is designed and built in its own boiler factory, which holds the class B boiler licence, ASME S with National Board registration, and ISO 9001.
- What output and pressure does the CLHS cover?
- The CLHS covers 0.06–0.58 MW at atmospheric pressure, in 7 standard sizes. Every size is listed in the parameter table on this page.
- Which fuels can the CLHS use?
- Natural gas / LPG, diesel / heavy oil. The heat source is matched to the energy available on site; tell us which one you will use.
- What do you need for a quotation?
- Output, working pressure, fuel, power supply (for electric units), the application and the destination country.
