Industrial Thermal Boiler Solutions
Steam, hot water, thermal oil and hot air — for gas, oil, electricity, biomass and coal. 22 series, each with its full parameter table.
01 / 08
Steam Boilers
Steam boilers for process heat, cooking, sterilising, drying and laundry — from compact electric units of 12 kg/h to WNS three-pass fire tube boilers of 20 t/h and LSS vertical water tube boilers.
Steam Boilers overview →
02 / 08
Oil & Gas Fired Boilers
Gas fired and oil fired boilers for natural gas, LPG, city gas, diesel or heavy oil: horizontal three-pass WNS fire tube boilers, vertical LSS and LWS units, atmospheric CWNS and CLHS hot water boilers and YY(Q)W thermal oil heaters.
Oil & Gas Fired Boilers overview →
03 / 08
Electric Boilers
Electric steam boilers and electric hot water boilers have no burner, no flue and no fuel storage — a fit for food, pharmaceutical, laboratory and clean-room processes, and for sites with low-cost power.
Electric Boilers overview →
04 / 08
Biomass Fired Boilers
DZL single-drum chain grate boilers burn wood pellets, wood chips or coal — biomass and coal fired boilers for plants where solid fuel is cheaper than gas or electricity.
Biomass Fired Boilers overview →
05 / 08

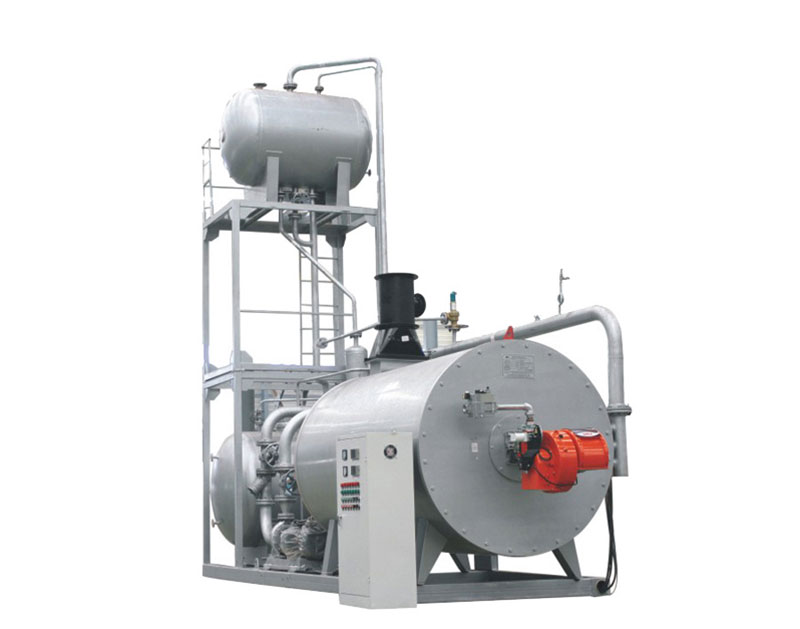

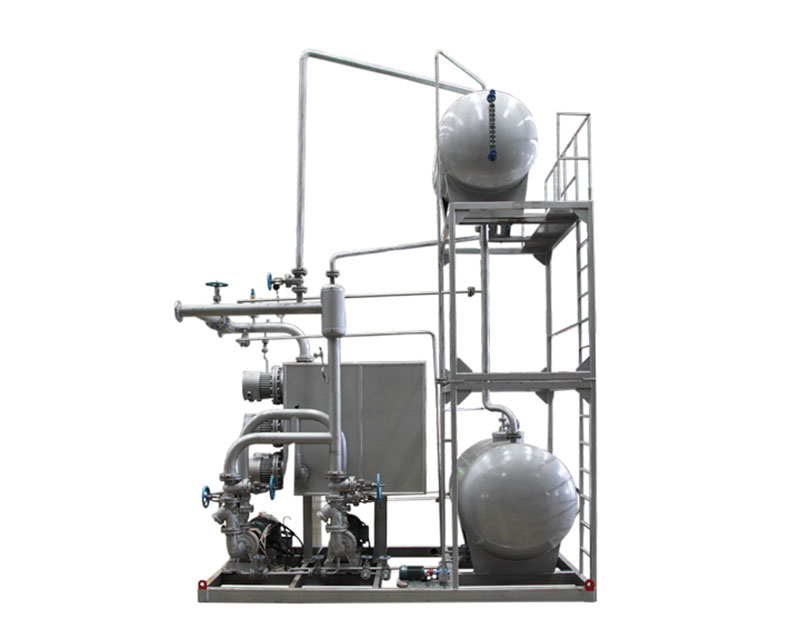

Thermal Oil Heaters
Thermal oil heaters — also called thermic fluid heaters or thermal oil boilers — deliver high process temperatures at low working pressure, for asphalt, chemical reactors, textile dyeing, plywood presses and printing lines.
Thermal Oil Heaters overview →06 / 08
Steam Generators
Compact industrial steam generators, electric or gas fired, with small water content for food processing, laundry, pharmaceutical, textile and laboratory steam — fast to start, easy to place next to the point of use.
Steam Generators overview →07 / 08
Hot Water Boilers
Hot water boilers for space heating, process water, washing and bathing: pressurised WNS, LDR and DZL boilers and atmospheric CWNS, CLHS, CLDR and CWDR boilers, for gas, oil, electricity, biomass or coal.
Hot Water Boilers overview →08 / 08

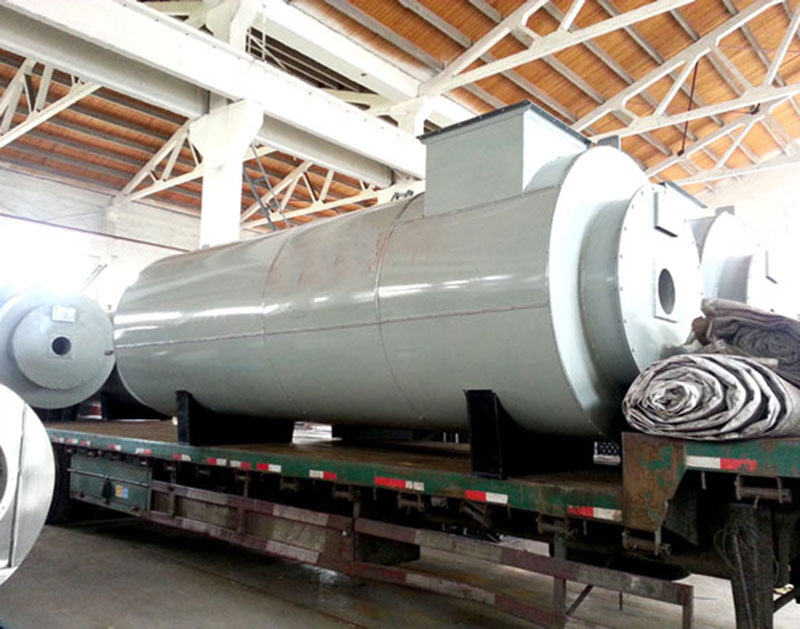

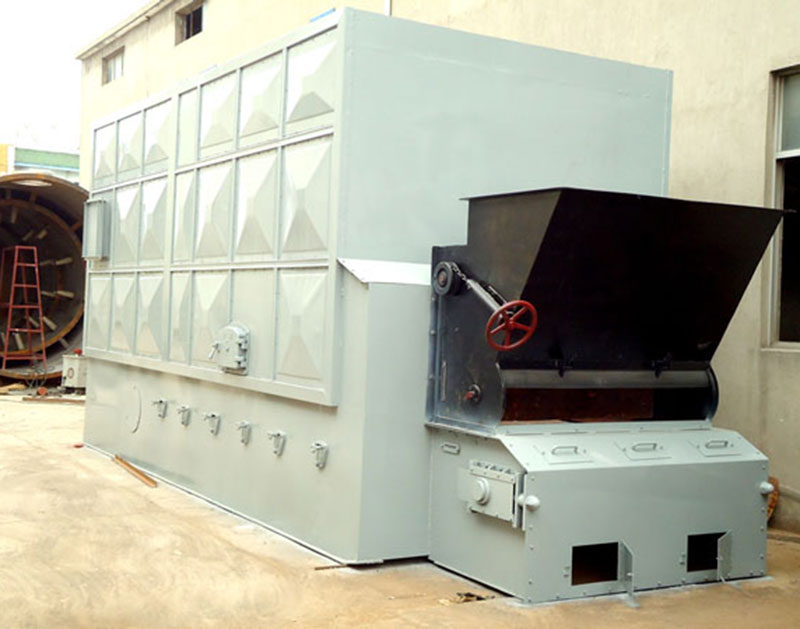

Hot Blast Stoves
Hot air generators (hot blast stoves) supply clean hot air for grain, feed, wood and chemical dryers and for space heating.
Hot Blast Stoves overview →
All series
Output and pressure ranges
Steam
- WNS Oil/Gas Fired Steam Boiler0.5–20 t/h · 0.7–1.25 MPa
- LSS Vertical Water-Tube Oil/Gas Steam Boiler0.5–2 t/h · 0.7–1.25 MPa
- LSS Inspection-Free Oil/Gas Steam Generator50–500 kg/h · 0.7 MPa
- LWS Vertical Oil/Gas Steam Boiler100–300 kg/h · 0.7 MPa
- LWS Skid-Mounted Oil/Gas Steam Boiler100–300 kg/h · 0.7 MPa
- LDR Inspection-Free Electric Steam Generator12–125 kg/h · 0.7 MPa
- LDR Vertical Electric Steam Boiler0.15–0.5 t/h · 0.7–1 MPa
- WDR Horizontal Electric Steam Boiler1–10 t/h · 1–1.25 MPa
- WFD Inspection-Free Electric Steam Generator0.15–1.2 t/h · 0.7 MPa
- DZL Biomass/Coal Fired Steam Boiler1–10 t/h · 0.7–2.5 MPa
- Fully Skid-Mounted Mobile Steam Boiler StationBuilt to order
Hot water

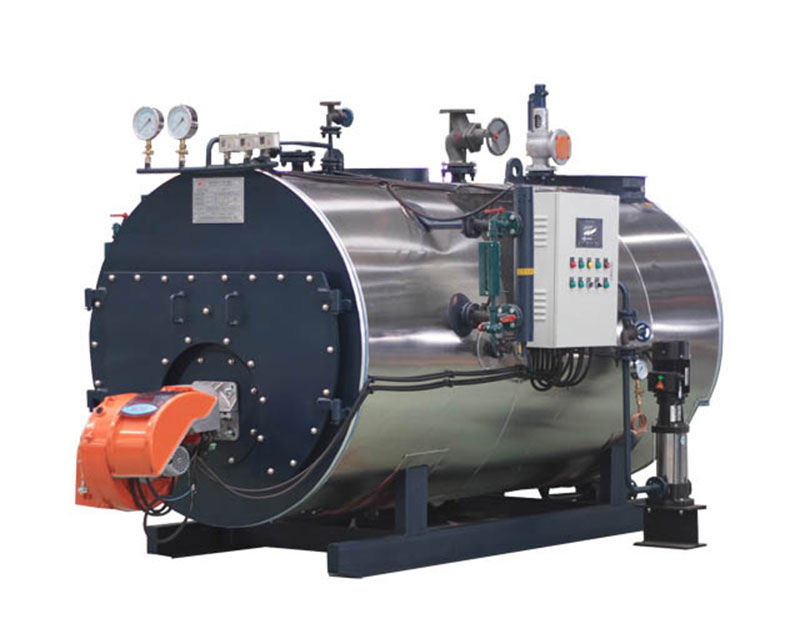

- WNS Pressurized Oil/Gas Fired Hot Water Boiler0.35–14 MW · 0.7–1 MPa

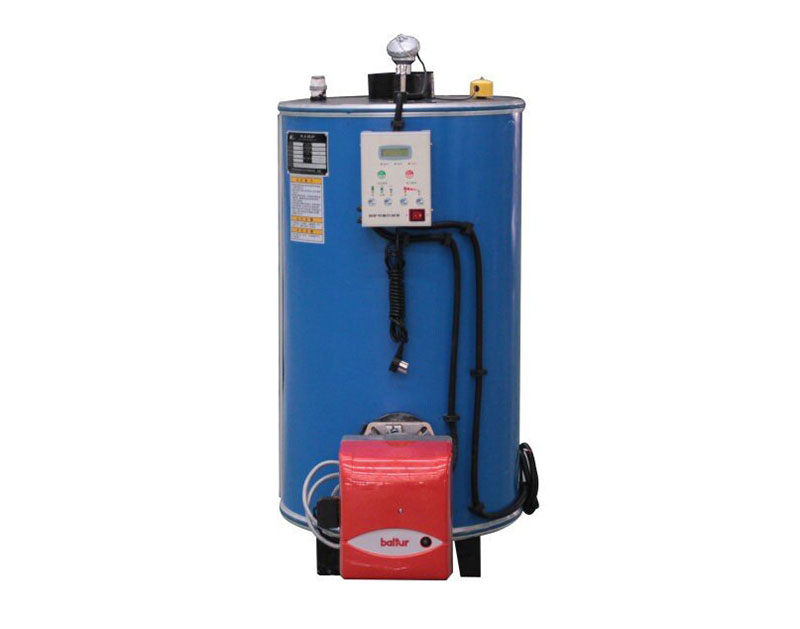

- CLHS Vertical Oil/Gas Fired Hot Water Boiler0.06–0.58 MW · Atmospheric

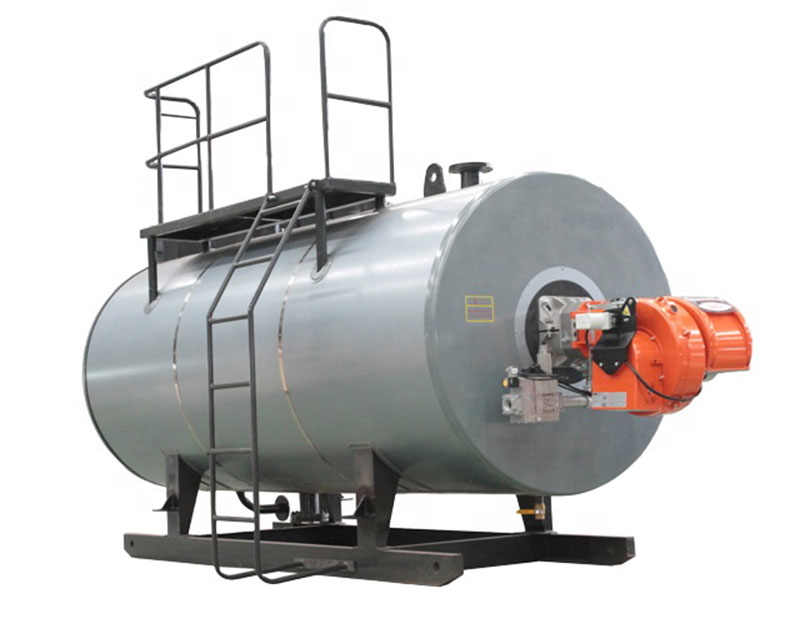

- CWNS Horizontal Oil/Gas Fired Hot Water Boiler0.7–2.8 MW · Atmospheric
- LDR Electric Pressure Hot Water Boiler0.7 MPa
- CLDR Vertical Electric Hot Water Boiler0.03–0.65 MW · Atmospheric
- CWDR Horizontal Electric Hot Water Boiler0.7–7 MW · Atmospheric

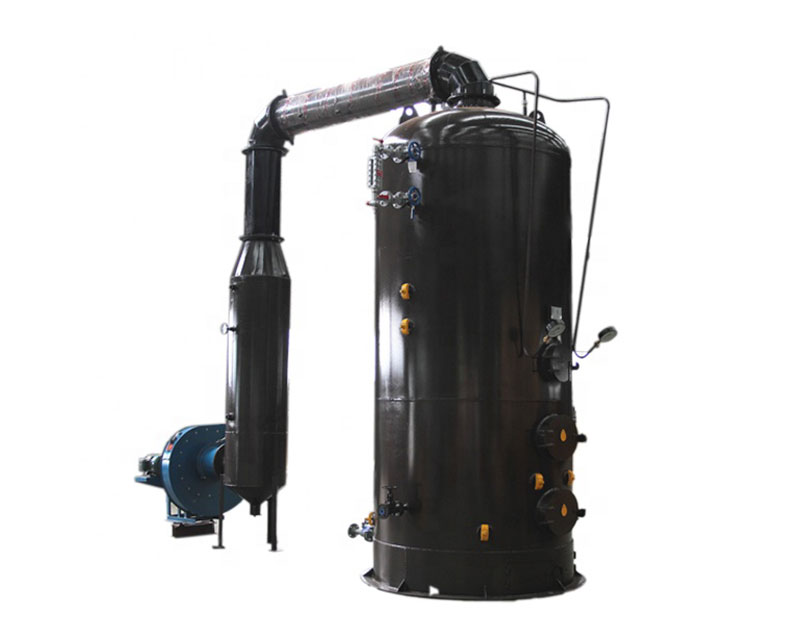

- DZL Biomass/Coal Fired Hot Water Boiler0.7–7 MW · 0.7–1.6 MPa
Thermal oil
Quotation
Request a quotation
Tell us the output, working pressure, fuel and application. An engineer replies with a model selection and a quotation.
