Hot water · CWNS series

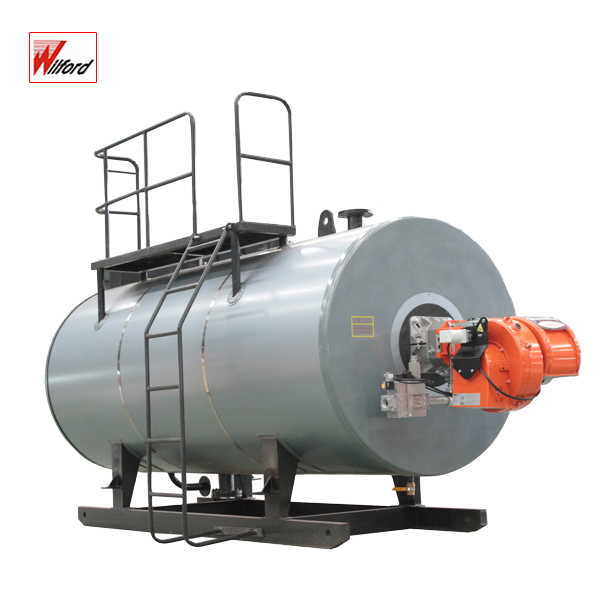

CWNS Horizontal Oil/Gas Fired Hot Water Boiler
Horizontal three-pass wet-back gas hot water boiler at atmospheric pressure, also for diesel — 6 standard sizes.

- Output
- 0.7–2.8 MW
- Working pressure
- Atmospheric
- Standard sizes
- 6
- Fuel
- Natural gas · Diesel
Design
CWNS series hot water boiler is three-pass all wet back shell type structure.
- Medium
- Hot water
- Fuel
- Natural gas / LPG, Diesel / heavy oil
- Output
- 0.7–2.8 MW
- Working pressure
- Atmospheric
- Standard sizes
- 6 · CWNS0.7 – CWNS2.8
Main body includs boiler shell, furnace, boiler smoke chamber and convection bank. convection smoke tube is made by threaded pipes, enhance heat transfer. More than 90% thermal efficiency. Intelligent, fully automatic control, over-temperature stand by.
Address:9na Calle Poniente y 4ta Ave. Norte # 2-14C, Santa Tecla, La Libertad EI Salvador
Features
Swipe →Gallery
CWNS Horizontal Oil/Gas Fired Hot Water Boiler
4 images
Technical parameters
CWNS series
Every standard size with output, pressure, fuel consumption, connections, dimensions and weight. Boilers are built to order — the quotation confirms the final figures.
Ask for drawings →Swipe the table for all sizes
| Type | CWNS0.7-95/70-Y.Q | CWNS1.05-95/70-Y.Q | CWNS1.4-95/70-Y.Q | CWNS1.75-95/70-Y.Q | CWNS2.1-95/70-Y.Q | CWNS2.8-95/70-Y.Q | ||
| Project | Unit | |||||||
| Rated thermal power | MW | 0.7 | 1.05 | 1.4 | 1.75 | 2.1 | 2.8 | |
| Total heat capacity | 104kcal | 60 | 90 | 120 | 150 | 180 | 240 | |
| Rated working pressure | MPa | Ordinary pressure | ||||||
| Fuel consumption | Light diesel oil | kg/h | 65 | 97.5 | 130 | 162 | 195 | 260 |
| Natural gas | Nm3/h | 70 | 105 | 140 | 175 | 210 | 280 | |
| LPG | Nm3/h | 30 | 45 | 60 | 75 | 90 | 120 | |
| City gas | Nm3/h | 170 | 255 | 340 | 425 | 510 | 680 | |
| Water inlet diameter | DN | 100 | 125 | 150 | 150 | 200 | 200 | |
| Water outlet diameter | DN | 100 | 125 | 150 | 150 | 200 | 200 | |
| Blowoff valve diameter | DN | 50 | 50 | 50 | 50 | 65 | 65 | |
| Voltage | V | 380 | 380 | 380 | 380 | 380 | 380 | |
| Overall size | Length | mm | 3020 | 3230 | 3650 | 4100 | 4550 | 5600 |
| Width | mm | 1700 | 1750 | 1820 | 1890 | 1930 | 2000 | |
| Height | mm | 1880 | 1960 | 2050 | 2100 | 2150 | 2270 | |
| Weight | kg | 2450 | 2780 | 3500 | 3860 | 4520 | 6300 | |
From Wilford’s published data sheet. Boilers are built to order — the quotation confirms the final figures.
Common questions
Questions about the CWNS
- What type of boiler is the CWNS?
- Horizontal three-pass wet-back gas hot water boiler at atmospheric pressure, also for diesel.
- Who manufactures the CWNS?
- Wilford (Zhangjiagang Wilford Thermal Co., Ltd.), an industrial boiler manufacturer and supplier in Zhangjiagang, China, since 1998. The CWNS is designed and built in its own boiler factory, which holds the class B boiler licence, ASME S with National Board registration, and ISO 9001.
- What output and pressure does the CWNS cover?
- The CWNS covers 0.7–2.8 MW at atmospheric pressure, in 6 standard sizes. Every size is listed in the parameter table on this page.
- Which fuels can the CWNS use?
- Natural gas / LPG, diesel / heavy oil. The heat source is matched to the energy available on site; tell us which one you will use.
- What do you need for a quotation?
- Output, working pressure, fuel, power supply (for electric units), the application and the destination country.
