Steam · LWS series

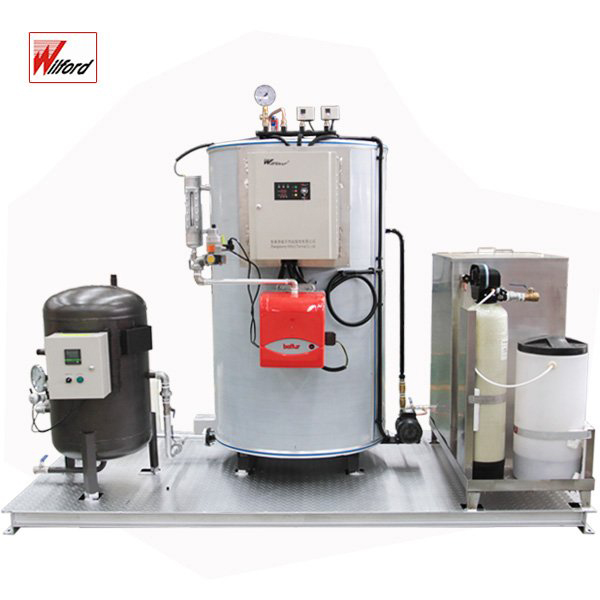

LWS Skid-Mounted Oil/Gas Steam Boiler
Skid mounted gas steam boiler with a tubeless vertical furnace, also for diesel — 4 standard sizes.

- Output
- 100–300 kg/h
- Working pressure
- 0.7 MPa
- Standard sizes
- 4
- Fuel
- Natural gas · Diesel
Design
The LWS series use vertical furnace, no tubes, four-return structure.
- Medium
- Steam
- Fuel
- Natural gas / LPG, Diesel / heavy oil
- Output
- 100–300 kg/h
- Working pressure
- 0.7 MPa
- Standard sizes
- 4 · LWS0.1 – LWS0.3
- Industry
- Foods, Garment, Textile, Paper, Brewery, Rice mill, Dairy Products, Laundry, Poultry Feed, Package, Plywood, Building Material, Chemical, etc
This design effectively increases smoke heat transfer to boiler water, which improves thermal efficiency and is good at energy saving. No-pipe design can prevent the boiler from scaling and being damaged.
Features
Swipe →Gallery
LWS Skid-Mounted Oil/Gas Steam Boiler
5 images
Technical parameters
LWS series
Every standard size with output, pressure, fuel consumption, connections, dimensions and weight. Boilers are built to order — the quotation confirms the final figures.
Ask for drawings →Swipe the table for all sizes
| Model | LWS0.1-0.7-Y.Q | LWS0.15-0.7-Y.Q | LWS0.2-0.7-Y.Q | LWS0.3-0.7-Y.Q | ||
| Item | unit | |||||
| Rated evaporation | kg/h | 100 | 150 | 200 | 300 | |
| Rated working pressure | MPa | 0.7 | 0.7 | 0.7 | 0.7 | |
| Saturated steam temperature | ℃ | 170 | 170 | 170 | 170 | |
| Feed water temperature | ℃ | 20 | 20 | 20 | 20 | |
| Weight | T | 0.6 | 0.68 | 0.8 | 1.1 | |
| Water capacity | L | 49 | 190 | 220 | 280 | |
| Fuel consumption | Light diesel oil | Kg/h | 6 | 9 | 12 | 18 |
| natural gas | Nm3/h | 9.1 | 13.7 | 18.2 | 27.3 | |
| LPG | L/h | 14.2 | 21.3 | 28.4 | 42.5 | |
| a main steam valve | mm | 25 | 25 | 32 | 32 | |
| b safety valve | mm | 25 | 25 | 25 | 25 | |
| c water inlet | mm | 15 | 15 | 15 | 15 | |
| d drain valve | mm | 20 | 25 | 25 | 25 | |
| e chimney | mm | 133 | 159 | 159 | 219 | |
| Overall size | L | mm | 1020 | 1150 | 1150 | 1270 |
| W | mm | 1080 | 1260 | 1260 | 1570 | |
| H | mm | 1750 | 1840 | 2140 | 2400 | |
| H1 | mm | 1480 | 1520 | 1820 | 2090 | |
From Wilford’s published data sheet. Boilers are built to order — the quotation confirms the final figures.
Common questions
Questions about the LWS
- What type of boiler is the LWS?
- Skid mounted gas steam boiler with a tubeless vertical furnace, also for diesel.
- Who manufactures the LWS?
- Wilford (Zhangjiagang Wilford Thermal Co., Ltd.), an industrial boiler manufacturer and supplier in Zhangjiagang, China, since 1998. The LWS is designed and built in its own boiler factory, which holds the class B boiler licence, ASME S with National Board registration, and ISO 9001.
- What output and pressure does the LWS cover?
- The LWS covers 100–300 kg/h at 0.7 MPa, in 4 standard sizes. Every size is listed in the parameter table on this page.
- Which fuels can the LWS use?
- Natural gas / LPG, diesel / heavy oil. The heat source is matched to the energy available on site; tell us which one you will use.
- What do you need for a quotation?
- Output, working pressure, fuel, power supply (for electric units), the application and the destination country.
