Who manufactures the LWS?

Wilford (Zhangjiagang Wilford Thermal Co., Ltd.), an industrial boiler manufacturer and supplier in Zhangjiagang, China, since 1998. The LWS is designed and built in its own boiler factory, which holds the class B boiler licence, ASME S with National Board registration, and ISO 9001.

What output and pressure does the LWS cover?

The LWS covers 100–300 kg/h at 0.7 MPa, in 4 standard sizes. Every size is listed in the parameter table on this page.

Which fuels can the LWS use?

Natural gas / LPG, diesel / heavy oil. The heat source is matched to the energy available on site; tell us which one you will use.

What do you need for a quotation?

Output, working pressure, fuel, power supply (for electric units), the application and the destination country.

Steam · LWS series

LWS Vertical Oil/Gas Steam Boiler

Small vertical gas steam boiler with a tubeless four-pass furnace, also for diesel — 4 standard sizes.

Request a quotation →Parameters

Output: 100–300 kg/h
Working pressure: 0.7 MPa
Standard sizes: 4
Fuel: Natural gas · Diesel

Design

The LWS series use vertical furnace no tubes, four return structure.

Medium: Steam
Fuel: Natural gas / LPG, Diesel / heavy oil
Output: 100–300 kg/h
Working pressure: 0.7 MPa
Standard sizes: 4 · LWS0.1 – LWS0.3
Industry: Foods, Garment, Textile, Paper, Brewery, Rice mill, Dairy Products, Laundry, Poultry feed, Package, Plywood, Building material, Chemical, etc

This design effectively increasing smoke heat transfer to boiler water, which, improving thermal efficiency and good at engergy saving. No pipe design could save boiler from scaled and destroyed. The heat evenly transfer to wall and fins, avoiding stress and extending service life. Compared with similar products, LWS series has large combustor room and low out-let temperature. The thread smoke tubes are mainly convective heating surface. ”

Features

Swipe →

01 / 06
Containing no water pipes or fire tubes, which is exempt from exploding of tubes.
02 / 06
Boiler will not burn down because of scaling, which reduces the maintenance cost.
03 / 06
The upper ring large steam room and separation measures for boiler and steam blow water can ensure the availability of high-quality steam.
04 / 06
Double W-shaped four -pass has big heat transfer coefficient and full heat exchange.
05 / 06
Low exhaust temperature, high thermal efficiency and long service life.
06 / 06
The vertical structure is compact and beautiful, which saves space and easy for installation.

Gallery

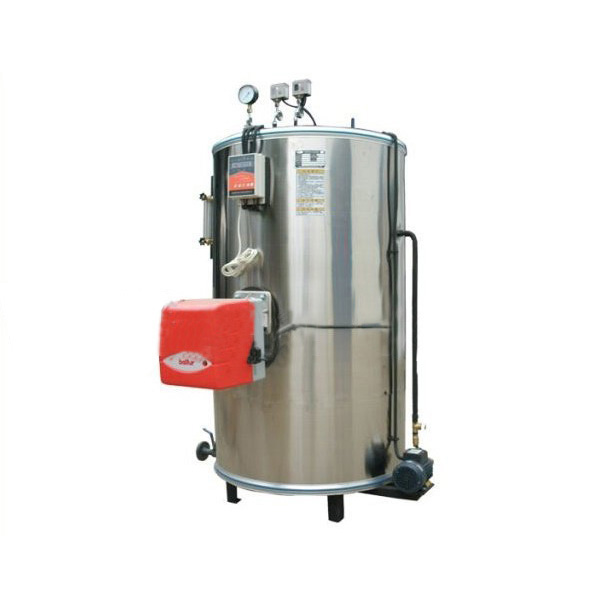

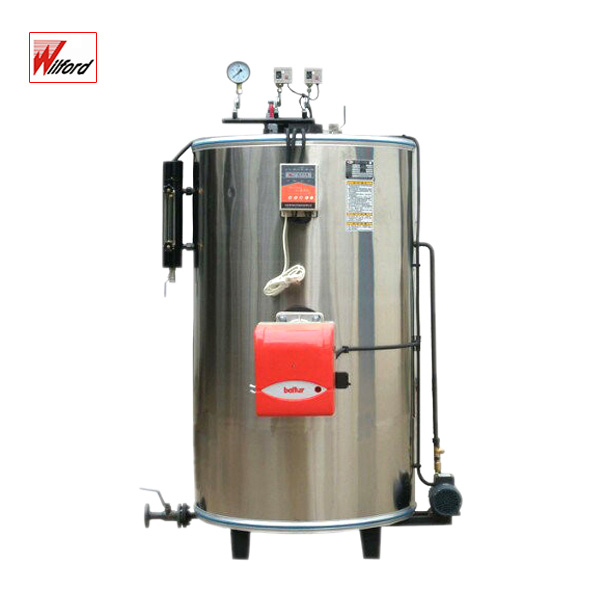

LWS Vertical Oil/Gas Steam Boiler

3 images

Technical parameters

LWS series

Every standard size with output, pressure, fuel consumption, connections, dimensions and weight. Boilers are built to order — the quotation confirms the final figures.

Ask for drawings →

Swipe the table for all sizes

LWS Vertical Oil Gas Steam Boiler

Model			LWS0.1-0.7-Y.Q	LWS0.15-0.7-Y.Q	LWS0.2-0.7-Y.Q	LWS0.3-0.7-Y.Q
Item		unit	LWS0.1-0.7-Y.Q	LWS0.15-0.7-Y.Q	LWS0.2-0.7-Y.Q	LWS0.3-0.7-Y.Q
Rated evaporation		kg/h	100	150	200	300
Rated working pressure		MPa	0.7	0.7	0.7	0.7
Saturated steam temperature		℃	170	170	170	170
Feed water temperature		℃	20	20	20	20
Weight		T	0.6	0.68	0.8	1.1
Water capacity		L	49	190	220	280
Fuel consumption	Light diesel oil	Kg/h	6	9	12	18
	natural gas	Nm3/h	9.1	13.7	18.2	27.3
	LPG	L/h	14.2	21.3	28.4	42.5
a main steam valve		mm	25	25	32	32
b safety valve		mm	25	25	25	25
c water inlet		mm	15	15	15	15
d drain valve		mm	20	25	25	25
e chimney		mm	133	159	159	219
Overall size	L	mm	1020	1150	1150	1270
	W	mm	1080	1260	1260	1570
	H	mm	1750	1840	2140	2400
	H1	mm	1480	1520	1820	2090

From Wilford’s published data sheet. Boilers are built to order — the quotation confirms the final figures.

Common questions

Questions about the LWS

What type of boiler is the LWS?: Small vertical gas steam boiler with a tubeless four-pass furnace, also for diesel.
Who manufactures the LWS?: Wilford (Zhangjiagang Wilford Thermal Co., Ltd.), an industrial boiler manufacturer and supplier in Zhangjiagang, China, since 1998. The LWS is designed and built in its own boiler factory, which holds the class B boiler licence, ASME S with National Board registration, and ISO 9001.
What output and pressure does the LWS cover?: The LWS covers 100–300 kg/h at 0.7 MPa, in 4 standard sizes. Every size is listed in the parameter table on this page.
Which fuels can the LWS use?: Natural gas / LPG, diesel / heavy oil. The heat source is matched to the energy available on site; tell us which one you will use.
What do you need for a quotation?: Output, working pressure, fuel, power supply (for electric units), the application and the destination country.
