Project Description

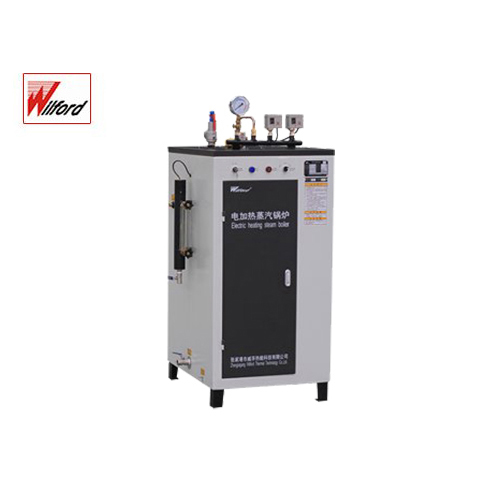

LDR0.15 Integrated electric steam boiler

Inquiry Now

0.012-0.2t/h 0.7Mpa
Rated steam capacity :150kg/h; Rated working pressure :0.7/1.0Mpa; Staturated steam temperature :170/193℃; Input power : 108KW; Rated voltage :3N AC 50Hz 380V; Fuel :Electric heating; Industry :Foods, Garment, Taextile, Paper, Brewery, Ricemill, Dairy Products, Laundry, Poultry feed, Package, Plywood, Building material, Chemical, etc.Vertical design electric steam boiler ,the heating elements are completely submerged in water and completely insulated-high efficiency and minimum radiation losses . All electrical components with CE and UL marks –ensure safety and long life service.

Inquiry Now

Vertical design electric steam boiler ,the heating elements are completely submerged in water and completely insulated-high efficiency and minimum radiation losses . After precision calculation&design, boiler could quickly and efficiently reach work pressure. Using low heat load surface heating elements– not easily melted or softened.Each component with water pressure and withstand voltage test.Boiler could immediately work after connecting to power and water supply. Nearly 100% thermal efficiency–quiet, clean, more in line with environmental requirements, No atmospheric emissions NOx (nitrogen oxides)

1.All electrical components with CE and UL marks –ensure safety and long life service.
2.Quickly start and stop, big operation load adjusting range,easily handling.
3.Each heating element use a concentrated beam flange connection, independently arrangement, simple structure, high mechanical strength, safe, reliable, convenient replacement, long service life.
4.Flexible working methods, could set either manual or automatic mode.”
5.Unique power switching function,could be regulated based on actual demand of steam power, make same usage time/frequency ,improve equipment service life.
6.When electric boiler heating element in a group has problem, could immediate stop operation the destroyed heating group and cut off power supply.”
7. Vertical structure, compact and beautiful, elegant style, classic color, save room space and easily installation.”

Whole Picture Appreciation

Product system Drawings

Product Detail Analysis

Technological Process

Our Customer

Our Services

For each user, we understand and analyze in detail their different production environment and the shortage of products in order to provide reasonable technical solutions and timely after-sales service. We attach great importance to the effective operation system of boiler products to provide customers with problem solutions, and send experienced engineers to the site to guide. The company has accumulated a wealth of on-site problem-solving experience, providing strong technical support and perfect after-sales service. User success is our success!

Company Information

Wilford company is specialized in manufacturing the medium and small sized boilers with high quality to solve the high energy efficiency requirements of customers in industrial and commercial fields for steam and heat sources. We supply the whole solution of boilers and boiler systems, reduce energy consumption, save operating costs for each plant, enhancing the environmental protection requirements.
Since 1998, the company are insisted on intelligent and lean production as the leading factor to ensure that each product is super safe and high quality. The fuel, gas and electric heating boilers have high technical content. The company has won many inventions, many high-tech products and new technology and new product awards. We regard the boiler’s efficiency index and extremely low nitrogen emission requirements as the main innovation objectives, Keep unremitting efforts in the environmental protection and energy saving of boilers.
Our products have obtained ASME, CE, SIGAPORE MOM, MALAYSIA DOSCH, AUSTRALIAN WORK SAFE, RUSSIA CU-TR and other certification, the local registration of various countries and other problems are very professional, we have a very strong service team, good service for each customer is our only pursuit!

LDR Vertical Electric Heating Steam Boiler
Type LDR0.15 LDR0.2 LDR0.3 LDR0.5
Project Unit
Rated evaporation t/h 0.15 0.2 0.3 0.5
Rated working pressure MPa 0.7/1.0 0.7/1.0 0.7/1.0 0.8/1.0
Staturated steam temperature 170/193 170/193 170/193 170/193
Input Power KW 108 144 216 360
Input current A 162 216 324 540
Rated pressure V 3N AC 50Hz 380V
Power×Group KW×P 18×6 18×8/24×6 27×8 36×10
a Main steam valve diameter DN 25 25 32 50
b Safety valve diameter DN 25 25 25 40
c Inlet diamater DN 15 15 25 25
d Blowoff  Valve diameter DN 25 25 40 40
Overall size L mm 1100 1150 1300 1450
W mm 950 950 1100 1350
H mm 1950 2000 2100 2300
Weight kg 350 450 680 980
We can provide customized products for specific power supply in the world.

Q : Are you a factory or a trading company?
A : We are a 20-year-old industrial boiler factory , specializing in gas oil diesel electric fired boilers. Now we are one of leading industrial boiler manufacturers in China.
Q : What is the Warranty for the boilers?
A : Our steam boiler warranty is one year, During the warranty period, any parts damaged, you can get a new parts for free.
Q : How long should we wait for delivery?
A : Usually it will take about 35-45 days for pressured boilers, If you need to change the voltage or pressure, it need more time .
Q What about your payment term?
A : Usually it would be 30% deposit payment, 70% balance before delivery. We accept T/T, L/C and other payment way.
